The D3 ECO / D3-5 ECO recycled pallet is perfect for the distribution and storage of medium loads.



Characteristics:

- Available as 3-runner D3 ECO or 5-runner D3-5 ECO

- Tare weight of just 14 kg / 15 kg

- Robust construction

- Versatile and easily adaptable to current and future logistics requirements

- All runners have chamfered edges on both sides for ideal use with fork lift trucks

- The D3 ECO / D3-5 ECO version with 22 mm outside rims has an inner dimension of 1200 x 1000 mm for box and blister applications



Option:

- Corrosion-protected reinforcement profiles, for a load capacity of up to 1.250 kg in high rack

- Rim options: Without, 7 mm, 22 mm, 22 mm outside

- Pop-Ups as interlocking support for stacking of empty pallets

- Anti-slip plugs from top to underside of deck

- Integration of RFID transponders

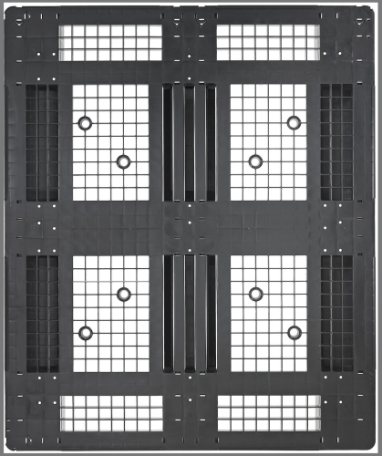

D3 ECO / D3-5 ECO

Pallet Dimension
Colour: Black
Capacity in rack
Plastic Type
    • 83325200: static: 5000kg, dynamic: 1000kg, in rack:400kg, reinforcement prof: 0, rims: n/a, runners: 3
    • 83325201: static: 5000kg, dynamic: 1000kg, in rack:400kg, reinforcement prof: 0, rims: 7mm, runners: 5
    • 83320200: static: 5000kg, dynamic: 1000kg, in rack:400kg, reinforcement prof: 0, rims: n/a, runners: 3
    • 83320201: static: 5000kg, dynamic: 1000kg, in rack:400kg, reinforcement prof: 0, rims: 7mm, runners: 5



    For further cpacities of 1000kg and 1250kg pls contact us

  • 20′ Container: 140
    40′ Container: 330
    40′ Container high cube: 374
