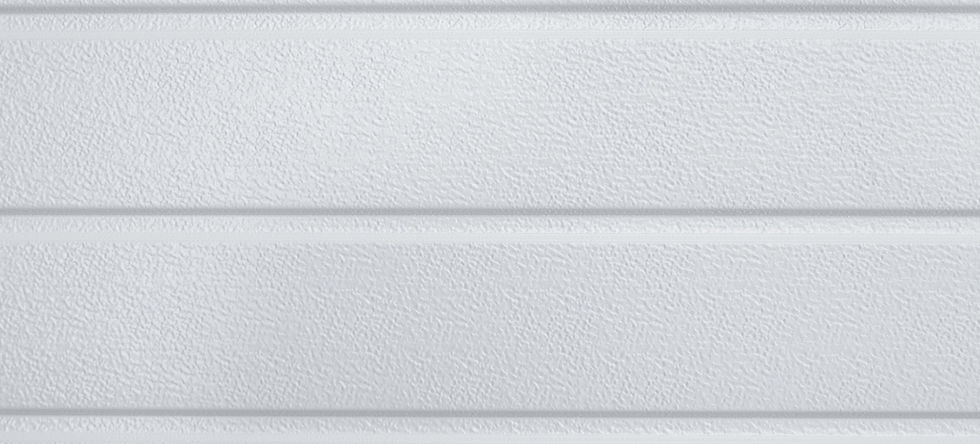

High-Line Stucco Plancha

The High-Line Stucco is a garage door with a decorative texture, designed for durability. There are three versions: Plano, Plancha and Colore.

The High-Line Stucco is a garage door with a decorative texture, designed for durability. There are three versions: Plano, Plancha and Colore.

Πληροφορίες

  • Outer face lined, embossed stucco and color RAL 9016

  • Inner face lined, embossed stucco and color RAL 9016

  • Fingersafe protection

  • Art nr 0235 - Thickness 40 mm - height 500 mm – weight 10.0 kg/m² - U Value 0,561 W/m²K

  • Art nr 0236 - Thickness 40 mm - height 625 mm - weight 9.5 kg/m² - U Value 0,561 W/m²K

  • Outer face: Z225 (225g/m²) according to EN 10326.

  • A 25µm polyester-based coating is applied to the galvanized steel.

  • Corrosion protection class III in accordance with DIN 55928-8 (EN 10169-2).

  • Inner face: Z100 (100g/m²) according to EN 10326.

  • A 25µm polyester-based coating is applied to the galvanized steel.

  • Gloss 30%.

  • Standard Quality: EN 10346

Δεν υπάρχουν τεχνικές προδιαγραφές διαθέσιμες

Τεχνικές Προδιαγραφές

Δεν υπάρχουν τεχνικές προδιαγραφές διαθέσιμες

High-Line Stucco Plancha

Download Brochure
