ELECTRIC WHEELCHOK SYSTEM

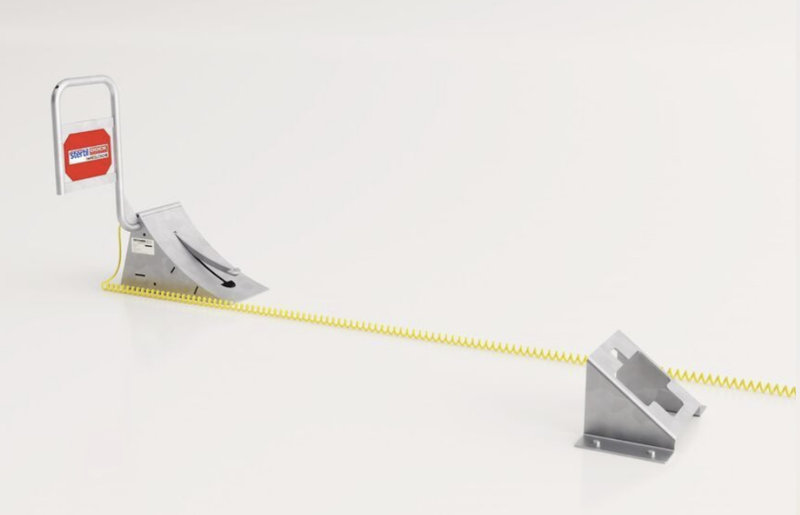

The Stertil Dock Products WHEELCHOK is an easy to install and operate electric wheel chock system.

The WHEELCHOK increases safety during the loading and unloading process, and helps to prevent "roll" of vehicle wheels and incidental movement of the vehicle.

Supplied with an external traffic light for clear communication, a stow-away holder and an inside control box for safe control.

Electric Wheel Chock System

The Stertil Dock Products WHEELCHOK is a valuable addition to any loading bay by providing additional controlled safety, by reducing the movement and "roll" of vehicle wheels during the loading and unloading process.

Suitable for all types of vehicles and types of warehousing and distribution centres, where the use of a cost effective, and high return on investment, safety product is required.

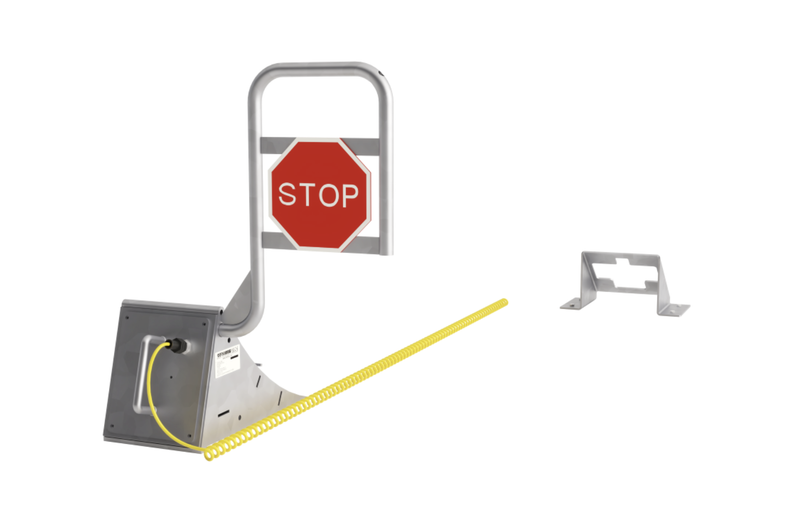

Wheelchock with Stop sign

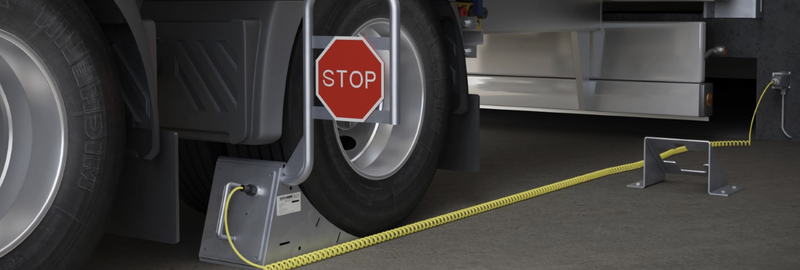

The WHEELCHOK is an easy to use electric wheel chock system with a STOP sign and handle. The WHEELCHOK is places by the driver in front of the rear wheel of the docked verhicle. It offers additional safety as it can only be activated and deactivated by authorised warehouse personnel using the internal Stertil Dock Products Control Box inside the building.

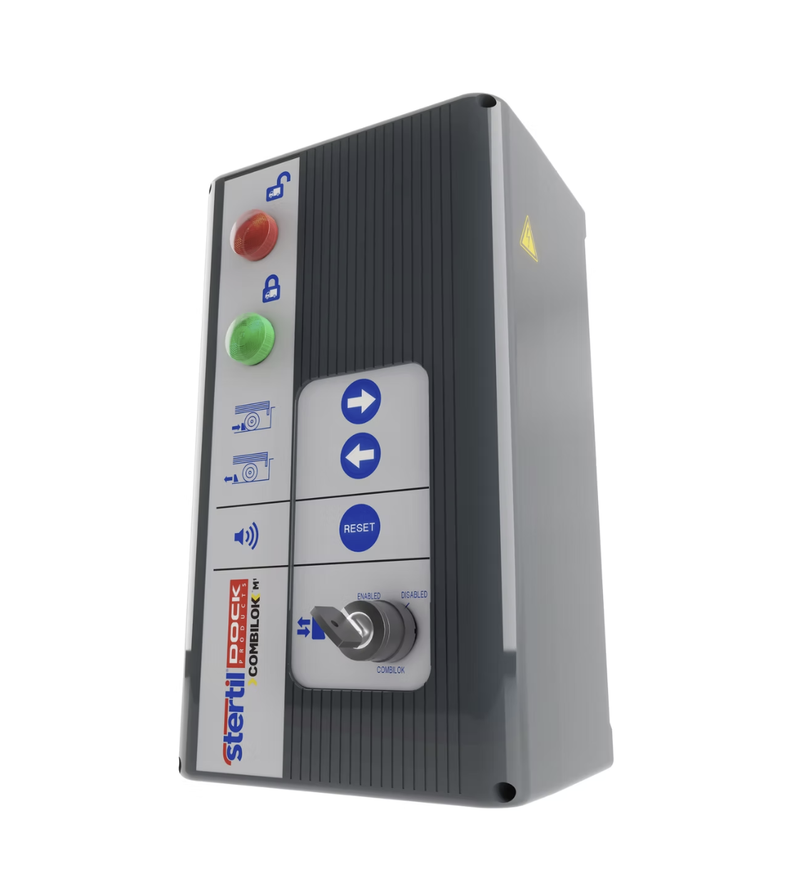

Control Box for Additonal Safety

The Control Box with visual aid warning lights and internal alarm in the event of unauthorised removal.

Optional

ELECTRIC WHEELCHOK SYSTEMELECTRIC WHEELCHOK SYSTEMELECTRIC WHEELCHOK SYSTEMELECTRIC WHEELCHOK SYSTEM

Technical Specifications

SpecificationValue
Height260 mm without handle / 700 mm with handle
Weight15 kg
Maximum Load10 kN
Wheel Detection bySwitch
Spiral Cable Length1500 - 5000 mm
Outdoor SocketIP 67
Control Box220 V, Single Pahse, 50 Hz
Outdoor Traffic LightLED 24 V Red/Green
CertificationCE, UKCA Certified
FEM ClassificationClass 1
