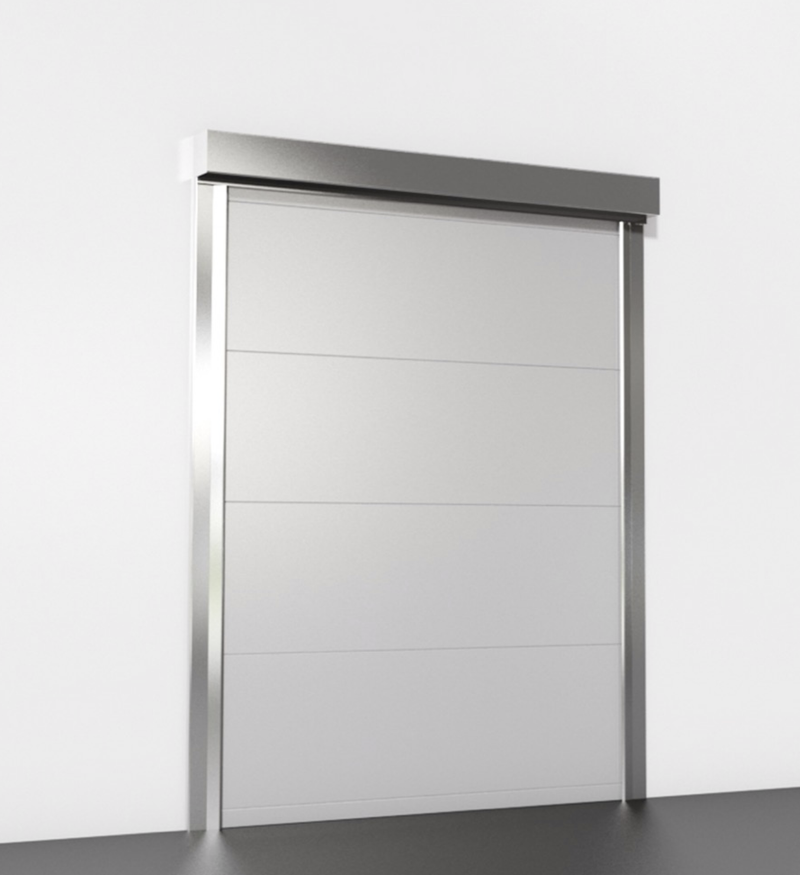

RGT EW60 / RGT EW90
Quietly waiting. Instantly closing. RGT EW60 / EW90 – 60 or 90 minutes of critical fire containment when it matters.
Certification
tested in accordance with EN 1634-1
classified according to EN 13501-2
validated cycle test in accordance with C2 (> 10.000 cycles)
CE marked in accordance with EN 13241 and EN 16034
Application
only suitable for indoor / indoor situations
only to be used in case of calamity (‘waiting’ function)
mounting only possible on the wall / opening
permissible mounting surfaces include: aerated concrete, sand-lime brick, concrete, masonry, fire-resistant steel construction, metal stud wall
Standard
gravity failsafe tubular motor 230 V incl. control box
optical / acoustic signaling
galvanized steel side guides and cover box
Technical Specifications
| Specification | Value |
|---|---|
| classification | EW |
| fire resistance | 60 min / 90min |
| max opening width | 8000mm / 6000mm |
| max opening height | 8000mm / 6000mm |
| max opening | 48m2 / 19,25m2 |
Features
- emergency battery (UPS) for maintaining open position in the event of a power failure
- galvanized steel parts powder coated in RAL color of choice
- visible parts side guides and cover box in stainless steel INOX 304
- chamfered construction on top of cover box
- smoke detector for a stand-alone system
- various switches
